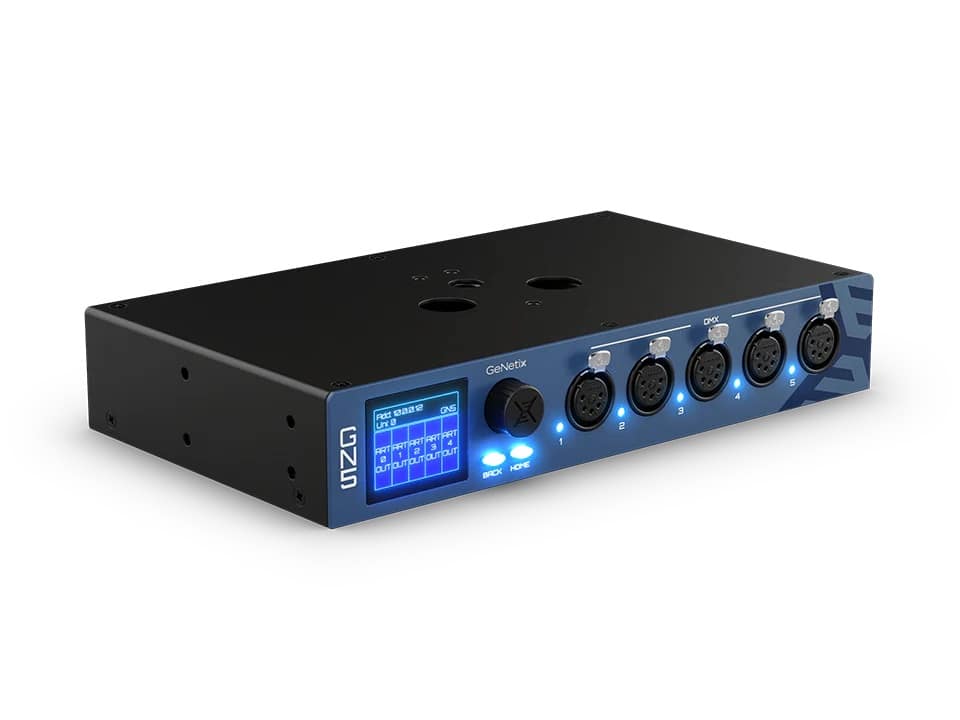

ChamSys GeNetix GN – 5-Port Node

The GeNetix Node 5 serves as a versatile solution for remote data distribution across various applications, supporting Timecode, MIDI, and 10Scene functionalities. Compatible with Art-Net, sACN, and RDM protocols, it offers full configuration from ChamSys consoles, its built-in web server, or the unit’s display. With configurable DMX ports, it can function as both input and output, featuring adjustable DMX timings. Equipped with two network ports, it can be powered via PoE or mains through its powerCON TRUE1 line input. Whether standalone, truss-mounted, DIN rail mounted, or rack-mounted, its flexibility caters to diverse environments.

The interface’s LTC and MIDI ports facilitate Timecode and MIDI notes input/output to MagicQ systems via ChamNet, supporting Art-Net timecode for compatibility with other systems. When connected to MagicQ PC Systems via USB, GeNetix Node 5 unlocks MagicQ PC Systems in Full Unlocked Mode, enabling it to act as a gateway for Timecode, MIDI, and 10Scene, granting access to the full capabilities of MagicQ software across Linux, Mac, or PC platforms. As an Art-Net/sACN node, it unlocks up to 2 MagicQ Instances via Network.

ChamSys GeNetix GN5 Includes:

• Neutrik powerCON TRUE1 Power Cable
• DIN Rail Mount Clip

ChamSys GeNetix GN5 Features:

• 5 RDM DMX Ports supporting Input and Output
• Supports Art-Net & sACN
• LTC & MIDI Timecode over Ethernet
• MIDI Notes over Ethernet
• Webserver for remote configuration
• In-built display and encoder for local configuration
• Full Unlock of MagicQ PC Systems when connected via USB
• Full Unlock of up to 2 MagicQ Instances when connected via Network

ChamSys GeNetix GN5 Specifications:

• • Hardware Specifications:
  • RDM Direct DMX Ports: 5
  • Network Ports: 2
  • MIDI Ports: 2 (1 in, 1 out)
  • LTC Timecode Ports: 2 (1 in, 1 out)
  • 10Scene Ports: 1
  • PoE Input: Yes (Port 1)
  • USB Ports: 1 USB-C
  • Kensington Security Lock Fixing: Yes
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
• Software Specifications:
  • Art-Net/sACN: Yes
  • ChamNet Support: Yes
  • LTC & MIDI Timecode over ChamNet: Yes
  • MIDI Notes over ChamNet: Yes
  • 10Scene Gateway Functionality: Yes
  • Configurable DMX Timings: Yes
  • Web Server: Yes
  • DMX Redundancy Support: Yes
  • User Scene Store: Yes
• Node Weights and Dimensions:
  • Width: 250mm (9.84 inches)
  • Depth: 172mm (6.77 inches)
  • Height:44.4mm (1.75 inches)
  • Weight: 1.4 KG (3.08 lb)
