CUE Software Uploader

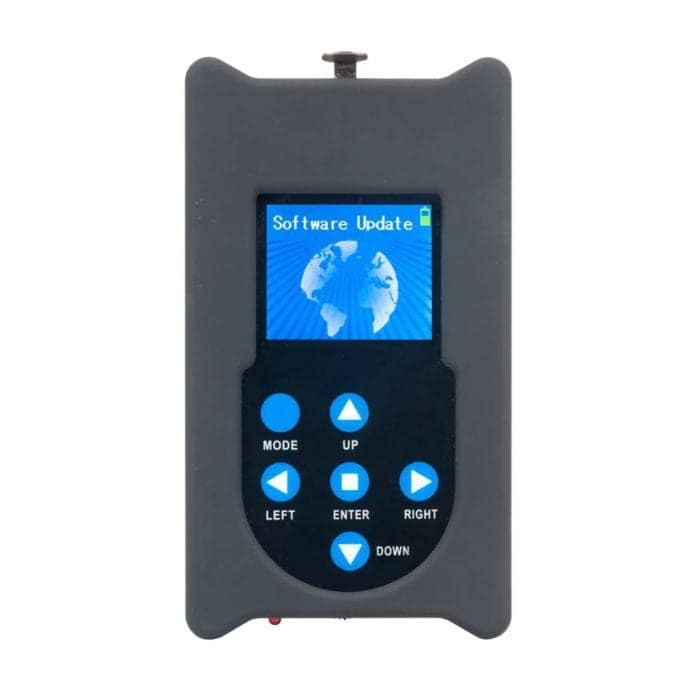

The CUE Software Uploader™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader. CUE Software Uploader™ features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to MICRO SD card adapter, and blank MICRO SD card.

ELATION COMPATIBLE MODEL LIST

• ACL BAR
• ACL 360 MATRIX
• ACL 360 ROLLER
• ACL 360i
• ACL 360 BAR
• ACL CURTAIN
• ACL PAR 200
• ACL PAR 200 IP
• COLOUR CHORUS 12/24/48/72
• CUEPIX BATTERN
• CUEPIX BLINDER WW2 / WW4
• CUEPIX PANEL
• CUEPIX PAR 300
• CUEPIX STRIP TRI / WW
• DW CHORUS 12/24/48/72
• DTW BAR 1000
• DTW BLINDER 350 IP / 700 IP
• DTW PAR 300
• DW PAR Z19 IP
• FUZE PAR Z60 IP / Z120 IP
• FUZE WASH Z120 / Z350
• SIXBAR 500 / 1000 / 1000 IP
• SIXPAR 100 / 200 / 300
• SIXPAR 100IP / 200IP / 300IP
• SIXPAR Z19 IP
• ZCL 360 BAR
• ZCL 360i
• ZCL BAR Z300 IP

CONTROL / CONNECTIONS

• 6 Button Touch Control Panel
• LCD Menu Display

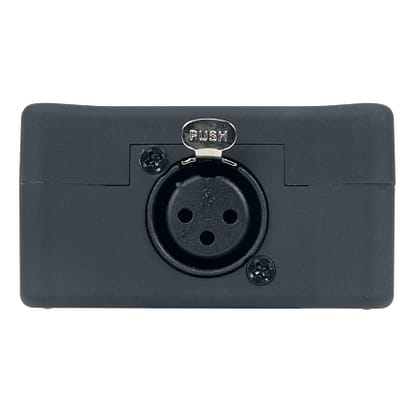

• 3pin DMX Out

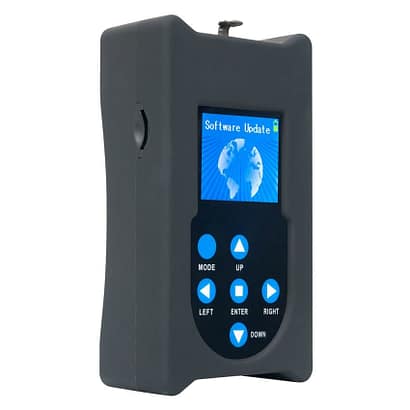

• MICRO SD Card Slot

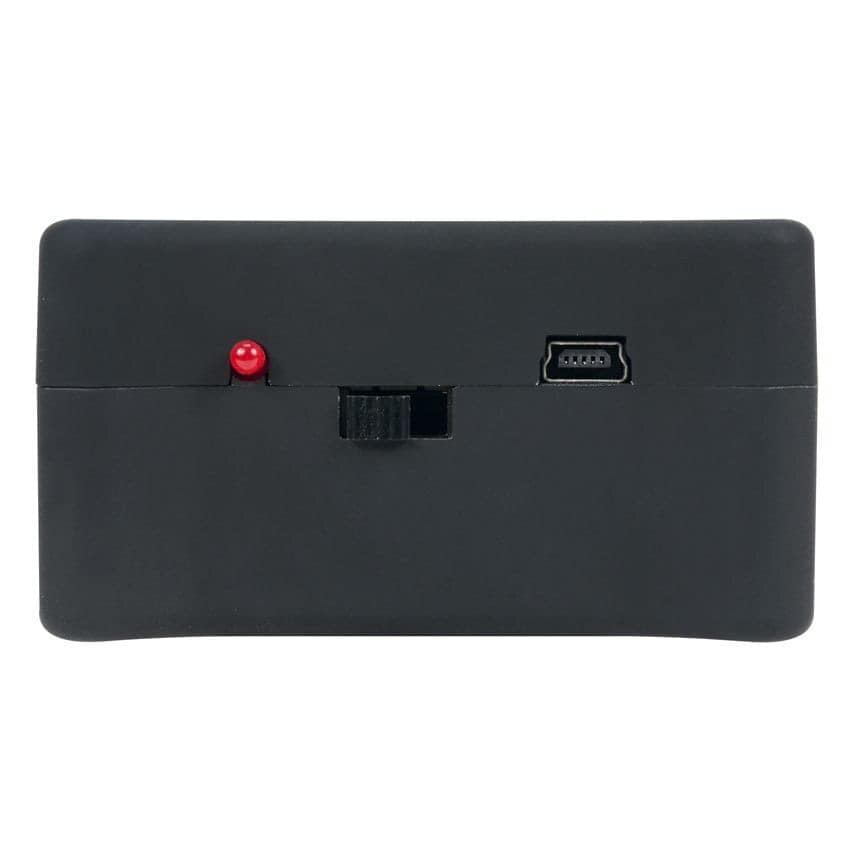

• Mini USB Input

SIZE / WEIGHT

• Length: 4.89” (124.15mm)
• Width: 2.73” (69.46mm)
• Vertical Height: 1.48” (37.5mm)
• Weight: 0.4 lbs. (0.2 kg)

ELECTRICAL

• USB Powered (Internal Battery)

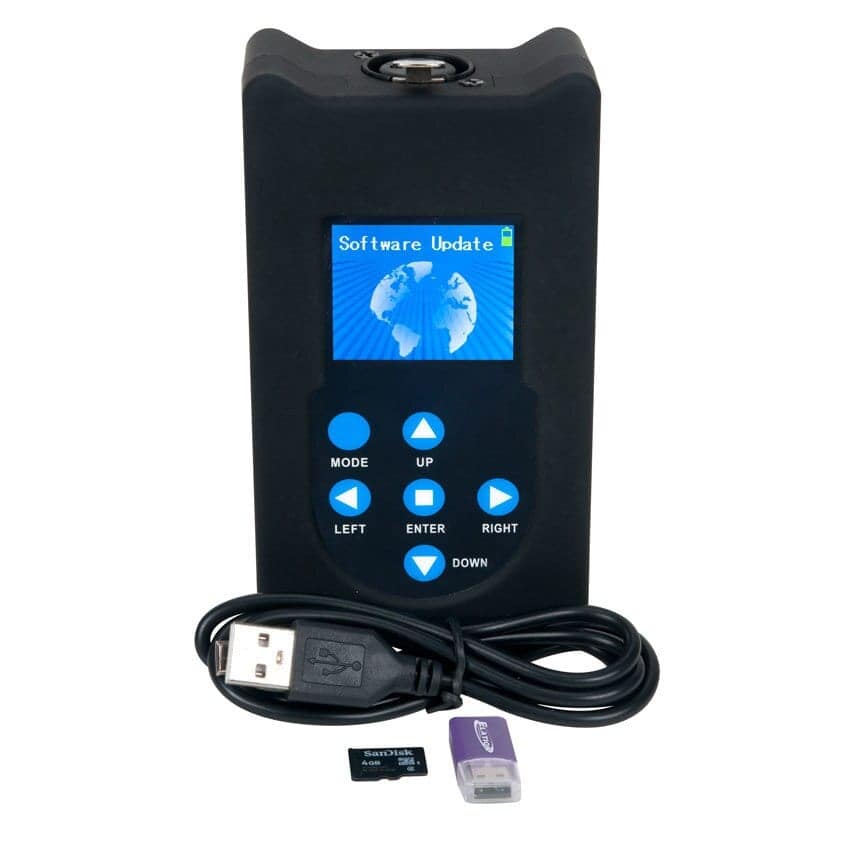

INCLUDED ITEMS

• USB Cable
• MICRO SD Card
• USB to MICRO SD Card Adapter
