JEM ZR45 120V/50-60Hz 92215370
$1,564.43
In stock
JEM ZR45 120V/50-60Hz 92215370

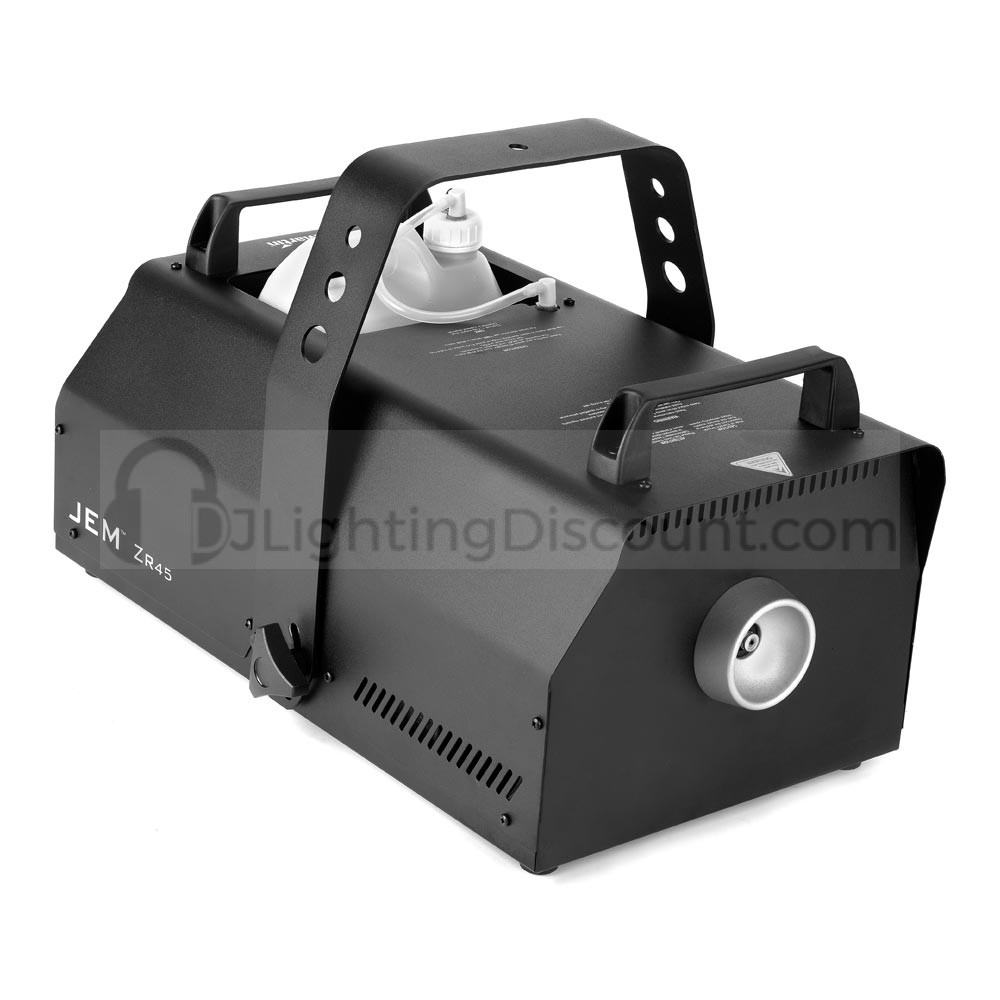

The JEM ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets.The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
- High endurance high-end fog machine
- Exceptional performance and output
- Various control options via digital remote, DMX and RDM
FEATURES
- Robust roadworthy design

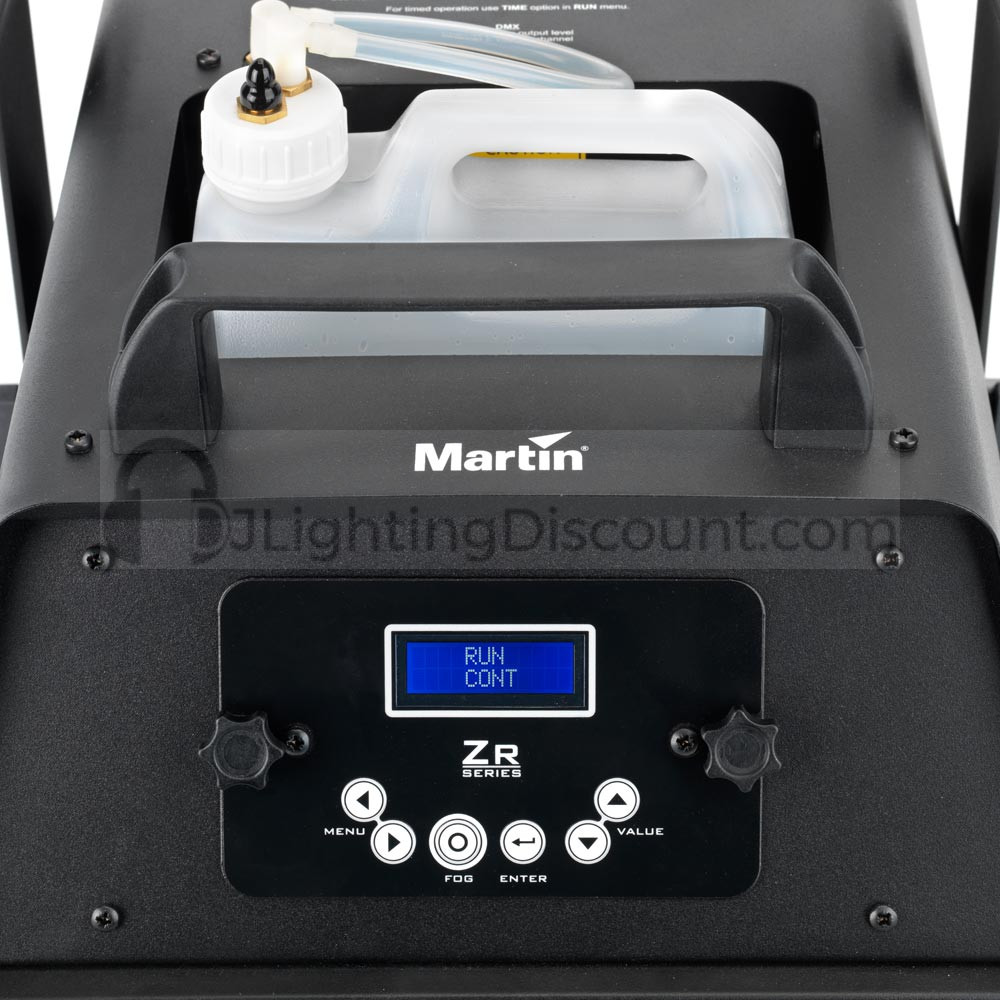

- Integrated Digital Remote Control
- DMX with RDM
- Floor standing or truss mounting (hanging bracket included)
- 2000 W (EU model) / 1800 W (US model) heat exchanger
- 1300 m³ (45,909 ft.³) per minute fog output
- Variable output control for subtle effects
- Continuous effect output
- Compatible with a wide range of JEM Pro-Fog fluids
- 5 l Fluid reservoir with quick-connect fitting
- Easy external fluid connection
- Optional Ducting Kit
SPECIFICATIONS
-
PHYSICALLength: 602 mm (23.1 in.)Width: 395 mm (15.6 in.)Height: 306 mm (12.1 in.)Height with hanging bracket: 393 mm (15.5 in.)Weight, dry: 17.7 kg (39.1 lbs.)Weight, filled: 22.7 kg (50 lbs.)PERFORMANCECoverage volume: 1300 m3 (45,909 ft3) per minuteFluid consumption (max.): 210 ml per minuteMaximum operating time, maximum output, 5 l of fluid: 1.18 hoursReady time: 10-minutesContinuous effect outputCONTROL AND PROGRAMMINGControl options: Integrated digital remote control, DMX, master/client link modeControl parameters: Continuous or timer-controlled outputFog: Variable output control, 0-100%DMX channels: 1External fluid control: Fluid sensingDMX compliance: ANSI E1.11 – USITT DMX512-ARDM compliance: ANSI/ESTA E1.20 RDMCONSTRUCTIONHousing: Steel and aluminumColor: BlackHeat exchanger:1800 W, thermally protected (US Model)
2000 W, thermally protected (EU Model)Fluid pump: Dual oscillating piston, high pressureFluid management: Fluid out sensing, sealed for transportationFluid reservoir: 5 l drop-in reservoir with quick-connect fittingRemote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLRExternal Fluid Control: Fluid sensingHanging bracket: Integrated yoke with safety attachment point

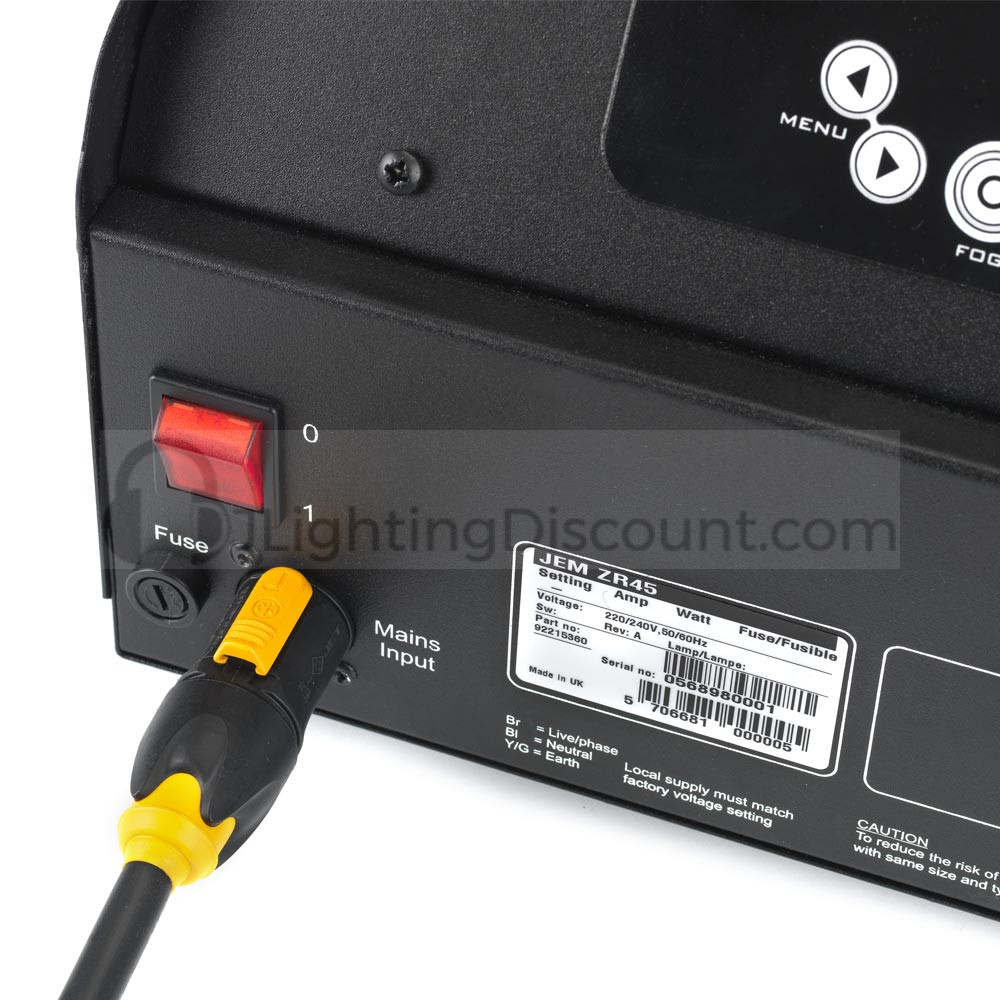

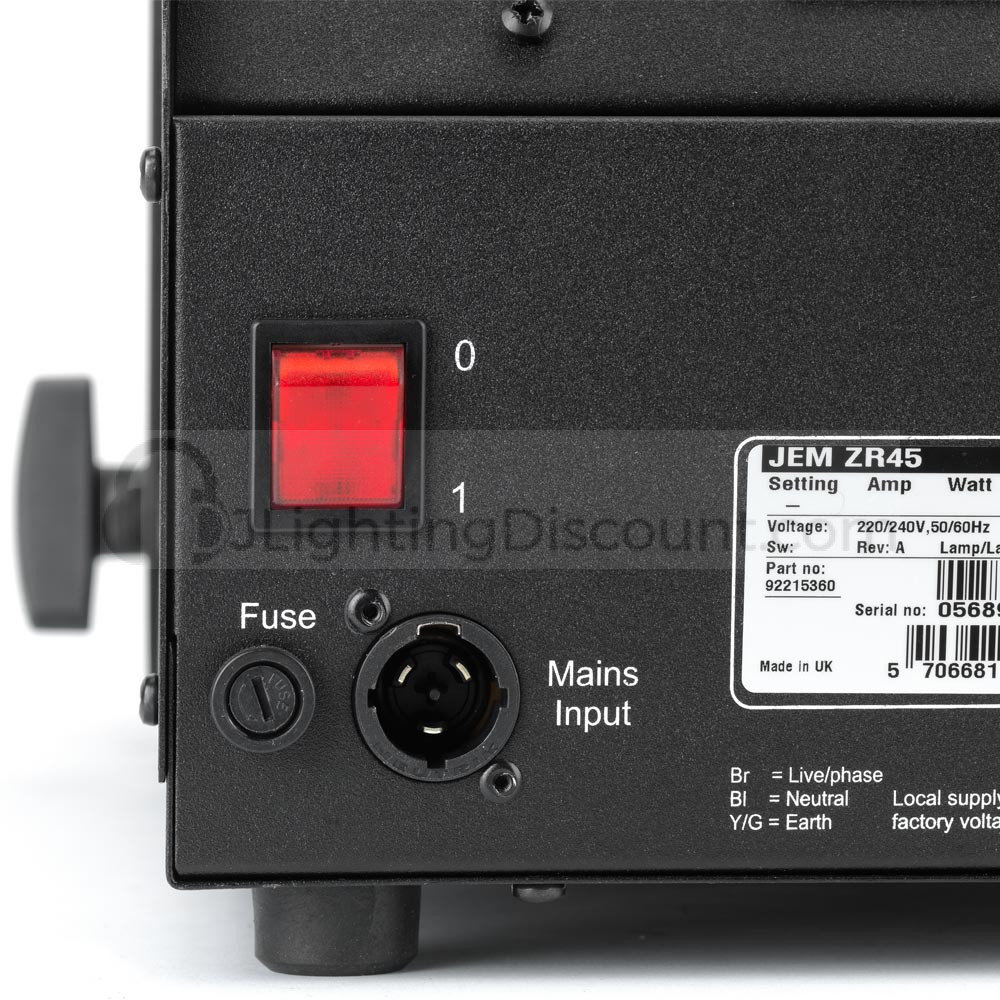

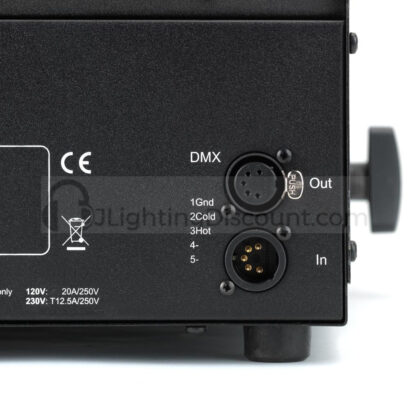

INSTALLATIONMounting: Standing or hangingOrientation: Up to +/-40° from horizontalClearance around machine: 100 mm (4 in.)CONNECTIONSAC Power: Neutrik PowerCON TRUE1DMX, link mode in/out: 5-pin locking XLRRemote control: 3-pin locking XLRFirmware: AVR socket -
ELECTRICALEU Model:AC power: 220-240 V nominal, 50/60 Hz
Main fuse: 12.5 AT (slow blow), 250 V
Typical power and current: 2100 W, 9.2 A*US Model:AC power: 100-130 V nominal, 50/60 Hz
Main fuse: 20 AT (slow blow), 125 V
Typical power and current: 1800 W, 15 A**Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
THERMALMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Exterior surface temperature, steady state: 30° C (86° F)Maximum nozzle temperature: 290° C (554° F)APPROVALSEU safety: EN 60 335-1EU EMC: EN 61000-6-3, EN 62233EU immunity: EN 61000-6-1US safety: UL 998Canadian safety: CSA C22.2 No 104Australia/NZ: RCM (pending)United Kingdom: UKCAINCLUDED ITEMSFluid reservoir, 5 l: P/N 34300506JEM ZR Series Integrated Digital Remote Control: P/N M55765048Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043Power input cable, US, 20A, powerCON TRUE1, molded NEMA 5-20P, 2 m (6.6 ft.): P/N 11501046ACCESSORIESJEM ZR45 Ducting System with 5 m (16.4 ft.) 4″ flexible ducting: P/N 92625014
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035Approved fluids*:
JEM Pro-Fog Fluid, Quick Dissipating
JEM Pro-Fog Fluid
JEM Pro-Fog Fluid, High Density
RUSH & THRILL Fog Fluid
Martin Pro-Clean and Storage FluidApproved discontinued fluids*:
Pro Smoke Studio (DX)
Pro Smoke Super (ZR)
Pro Smoke High Density (SP)
I-Fog Fluid
Regular DJ Fluid (DJ)
RUSH Fog Fluid
RUSH ELX Smoke Fluid
Martin Pro Clean SupremeService Tools:
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005*Various sizes available – contact your dealer or see ‘Fluids’ product pages for details
Installation hardware:
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick trigger clamp (vertical hanging suspension only: P/N 91602007
Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007ORDERING INFORMATIONJEM ZR45, EU: P/N 92215360JEM ZR45, US: P/N 92215370
| Weight | 888 oz |
|---|---|
| Dimensions | 12 × 14 × 12 in |
